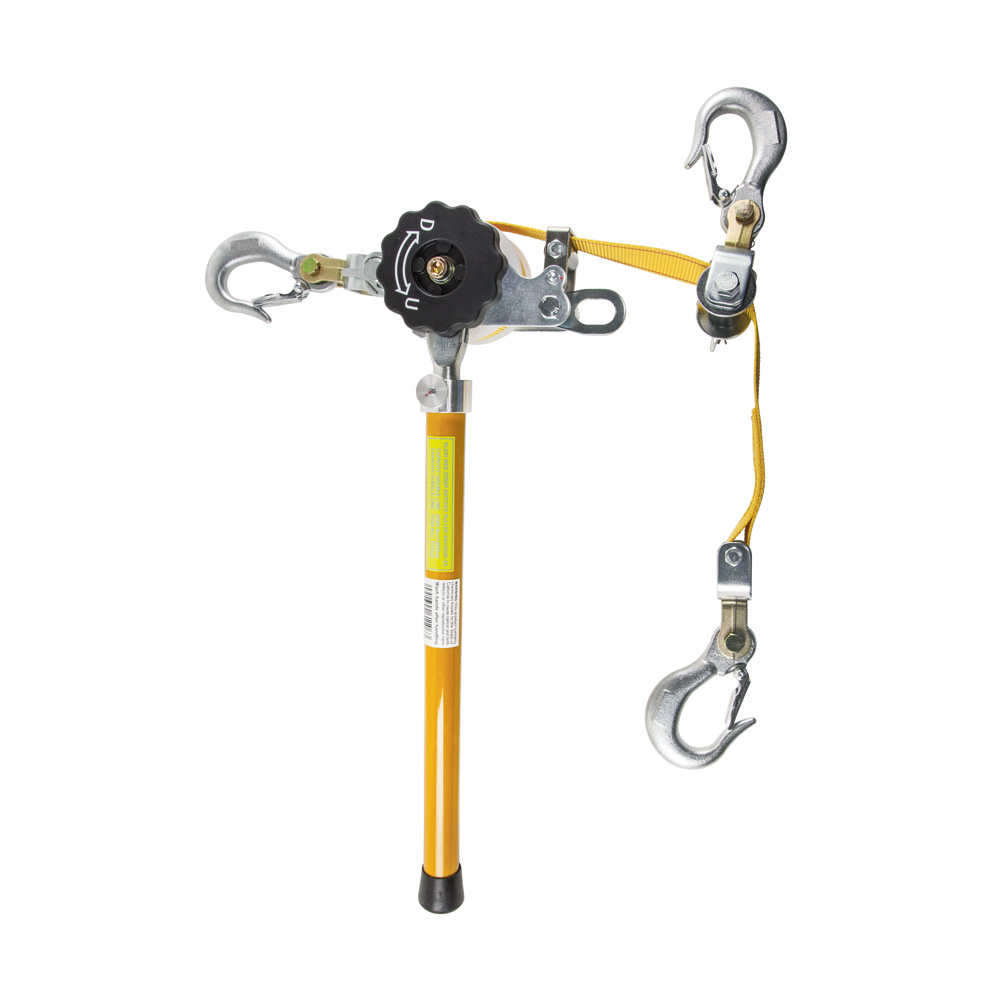

Webbing-Strap Hoist Deluxe with Removable handle

KN1600PEX

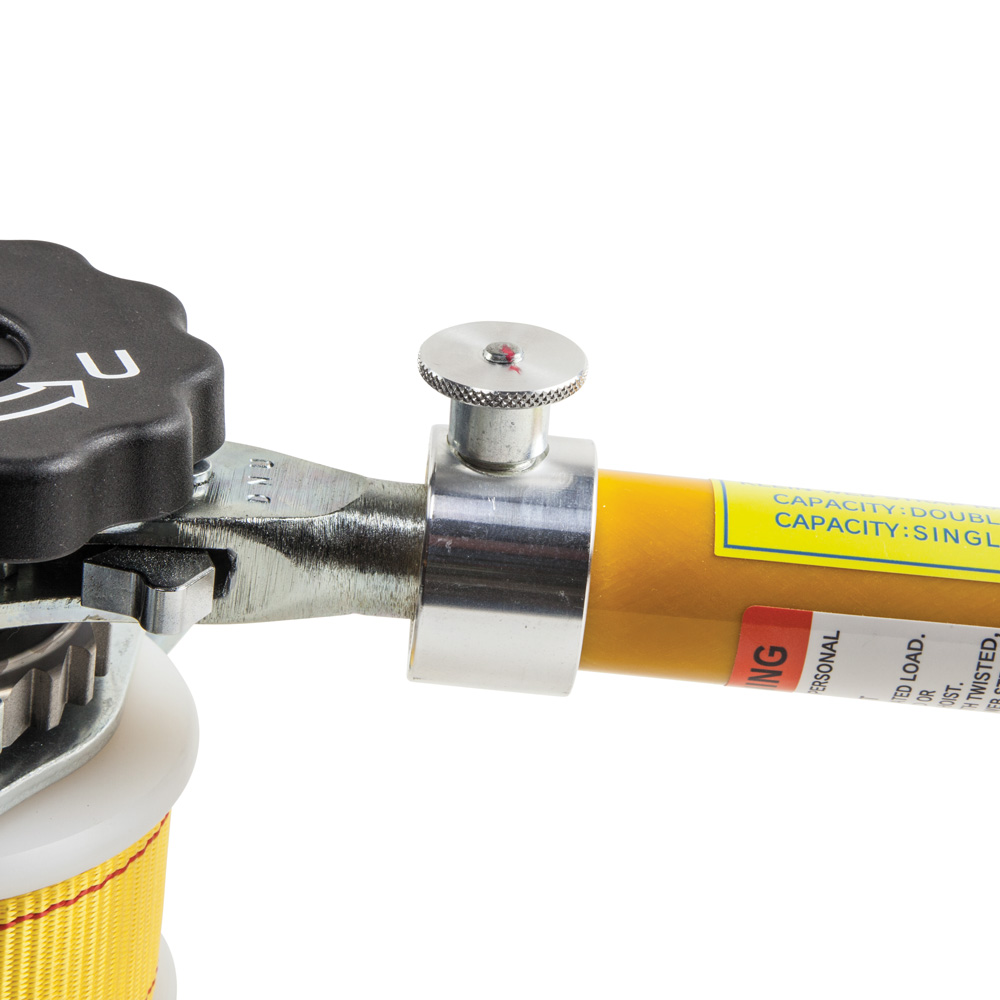

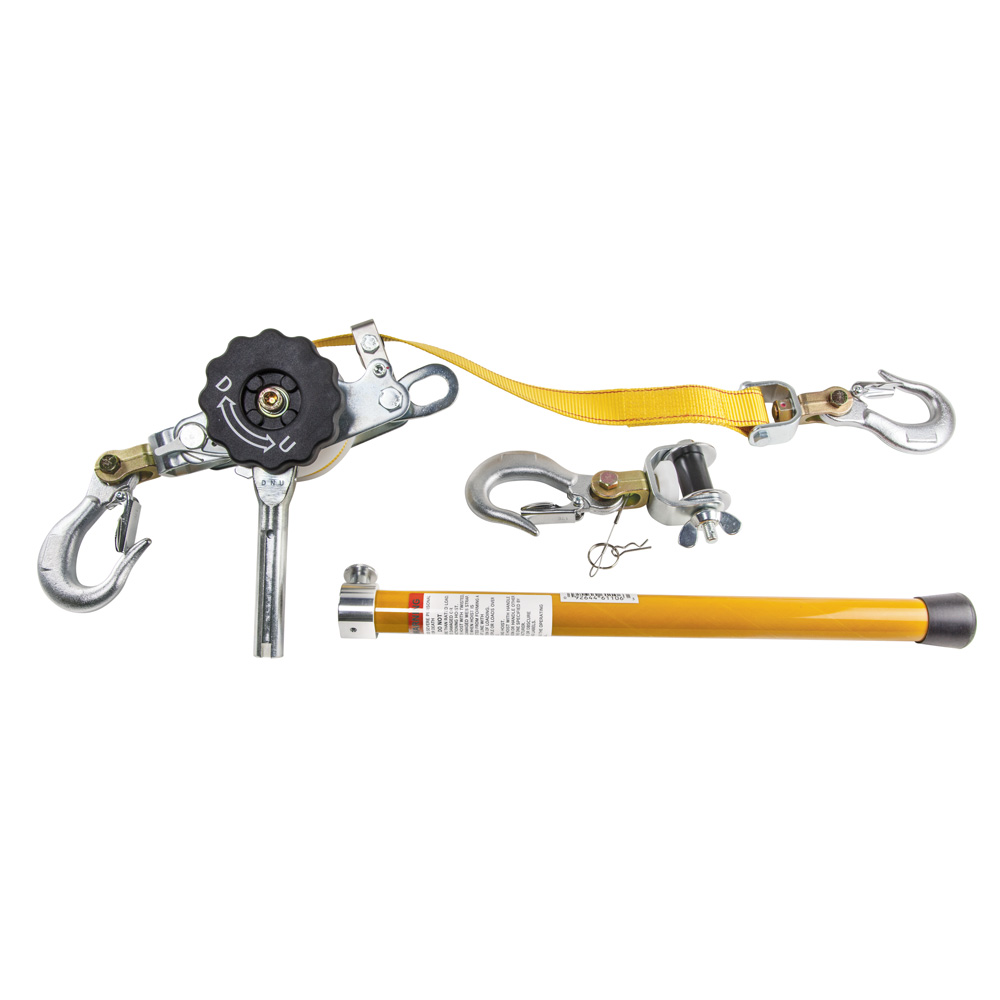

  • Removable handle

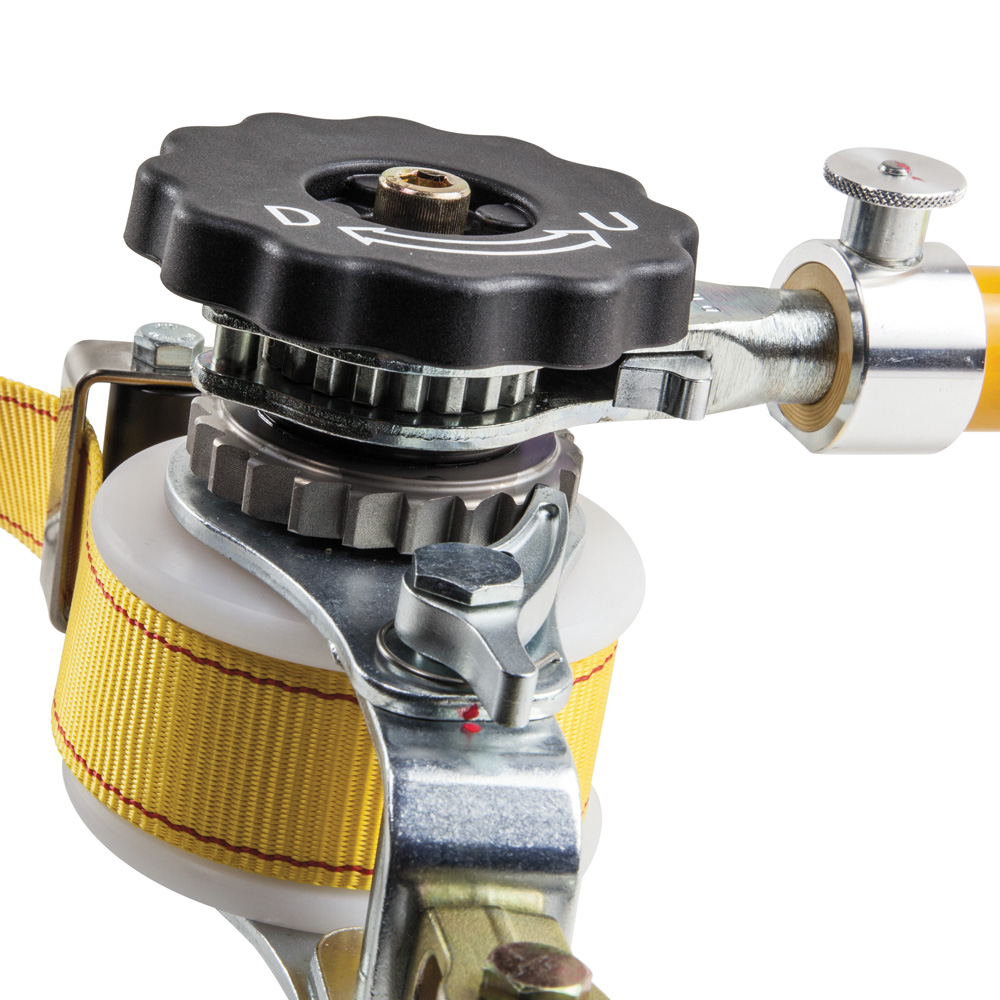

  • Tight ratcheting for less work and less fatigue
  • Deep V-notch in hook reduces lateral movement
  • Controlled tension release for safety
  • 360° handle rotation
  • 360 degree handle rotation easily works from any angle

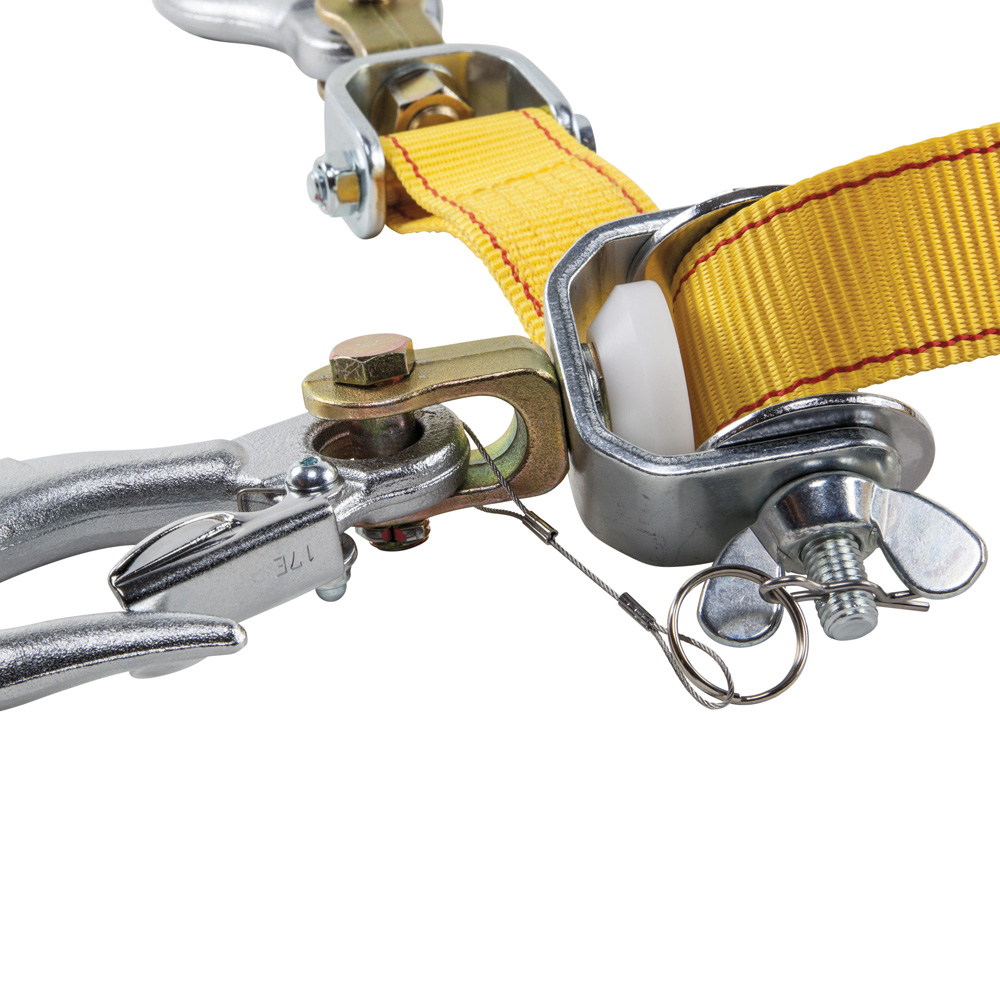

  • Wing nut and cotter pin assembly for easy removal of the floating hook
  • Meets ANSI/ASME B30.21-2014 and B30.10-2014 standards
Videos
Downloads

The Web Strap Hoist Deluxe has new features to make work easy and efficient.

Specifications
Single Line Pulling Distance:
20" to 138" (50.5 to 350.5 cm)
Weight:
13 lb (5.9 kg)
Overall Length:
33" (83.8 cm)
Special Features:
Removable Handle; Deep V-Notch in the Hook; Tight Ratcheting Mechanism; Non-Conductive Drum Knob; 360 Degree Handle Rotation
Double Line Load Rating:
3000 lb (1361 kg)
Double Line Pulling Distance:
26" to 79" (66.0 to 200.6 cm)
Type:
Hoists
Overall Height:
5" (12.7 cm)
Single Line Load Rating:
1500 lb (680 kg)
Overall Width:
4" (10.2 cm)
Application:
Lifting
Standard:
Meets ANSI/ASME B30.21-2014 and B30.10-2014 Standards
Included:
Hoist; Removable Handle
UPC:
092644611063
Additional Information
Warnings
  • Read, understand and follow all warnings, cautions, safety information and instructions in the manual before operating or servicing this hoist.
