Digital Multimeter, TRMS Auto-Ranging, 1000V, Temp, Low Impedance
MM720
- Multimeter with automatic ranging True Root Mean Square (TRMS) technology for increased accuracy
- Tester measures up to 1000V AC/DC voltage, 10A AC/DC current and 60 MOhms resistance, plus temperature, capacitance, frequency, low impedance (LoZ), duty-cycle, test diodes and continuity
- High visibility, reverse contrast display with optical sensor, to automatically optimise viewability in dark or bright ambient lighting
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- Low battery indicator and easily accessible battery and fuse compartment
- Tough meter is built to withstand a 6.6' (2 m) drop and is rated IP42
- Includes carrying pouch, test leads, thermocouple with adapter, and batteries
- CAT IV 600 V safety rating
- For use in basic and controlled electromagnetic environments, such as residential, business and light-industrial locations

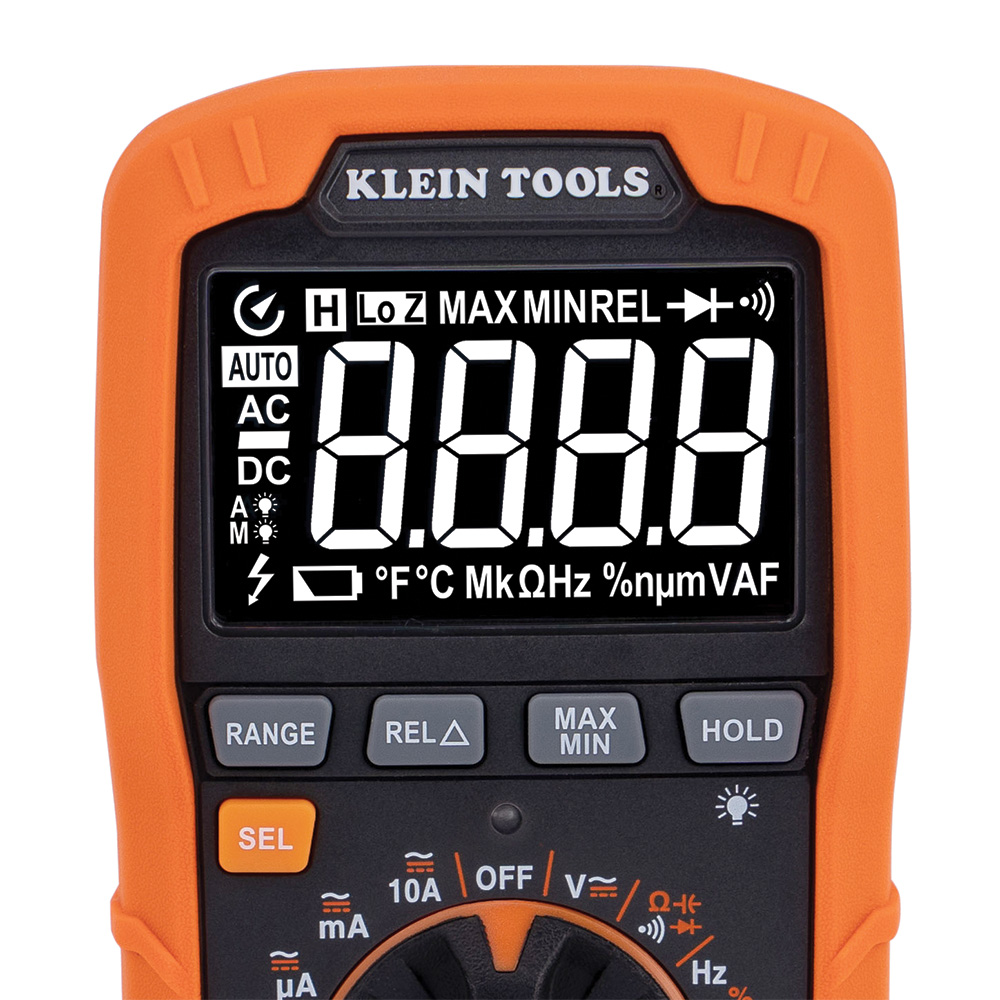

Klein Tools MM720 Multimeter is an automatically ranging true root mean squared (TRMS) digital multimeter that measures AC/DC voltage, AC/DC current and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, diodes and continuity. It features a high-visibility, reverse contrast LCD display with an optical sensor, to automatically optimise viewability in dark or bright ambient lighting.
Specifications
Type:
Digital Multimeter
Included:
Multimeter, Carrying Case, Test Leads with CAT III/CAT IV Safety Caps, Thermocouple, Instructions, 2 x AAA Batteries
Overall Length:
6.94" (17.6 cm)
Current:
10A AC/DC
Functions:
Measures up to 1000 VAC/DC Voltage, 10A AC/DC Current, 60MΩ Resistance, Temperature, Capacitance, Frequency, Duty-Cycle, Diodes, and Continuity
Drop Protection:
6.6' (2 m)
Special Features:
High-Visibility Display with Optical Sensor; Auto-Range; Min/Max/Relative; Low Impedance (LoZ) Mode; Auto Power-Off; Data Hold
Weight:
12.2 oz (345 g)
Material:
ABS, Electrical Components
Batteries:
2 x AAA
Color:
Orange/Black
Frequency:
1 Hz - 500 KHz
Application:
Testing and Measuring Voltage
Temperature Range:
-40° to 1832°F (-40° to 1000°C)
Voltage:
1000V AC/DC
Display:
6000 Count LCD
Overall Height:
1.88" (4.7 cm)
Overall Width:
3.37" (8.5 cm)
Ohms (Resistance):
60MΩ
Ingress Protection:
IP42
Capacitance:
6000 µF
Standard:
CAT IV 600V; CAT III 1000V
UPC:
092644693762
Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
- Before each use, verify the meter operation by measuring a known voltage or current.
- Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
